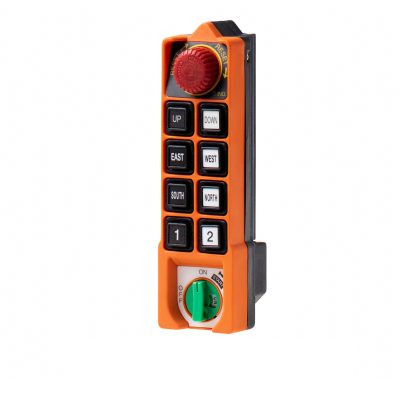

SAGA1-L10 transmitter is configured with 8 single/double detent push button switches, one Start and one Emergency Stop button (Mushroom). It features a multi-functional LED on the front panel and it gives status of transmitter (Battery power / Radio transmission / Error messages). The transmitter is powered with only two (2) AA batteries.
- Over 4.3 billion (32 bits) unique ID code
- Working temperature: -40℃ ~ +85℃
- Operating distance up to 100M
- Shock resistant against impact for harsh environment
- Low power consumption transmitter – Last up to 3 months with 2 AA batteries
- Pre-wired receiver for quick and easy installation
- PC software for customized configuration
- Frequency Control: Crystal.
Dimensions:
Transmitter SAGA1-L10/L10-1 163 x 49 x 45 mm (L x W x H)

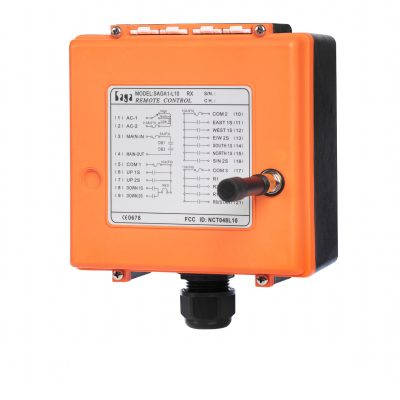

Receiver SAGA1-L10/L10-1 167 x 154 x 88 mm (L x W x H)
Weight:
Transmitter SAGA1-L10/L10-1 Approx. 210g (w/o Batteries)
Receiver SAGA1-L10/L10-1 Approx. 1400g (w/o Cable)
Power Supply:
48/110/220 VAC
The full kit is composed of transmitter + receiver with 1,5 m pre-wired cable + transmitter protective cover.
